Description
The 2027 Club Car Onward 4 Forward LSV for sale combines four forward-facing passenger seats, maintenance-free lithium power and factory street-legal engineering in one of Club Car’s most road-focused personal vehicles.
This particular inventory is equipped with Club Car’s 4.0 kWh Base Lithium-Ion battery rather than the optional 7.0 kWh XR battery. The seller also identifies the vehicle as a Standard configuration with 14-inch Mercury wheels, automotive safety glass, a 7-inch driver display, backup camera, overhead infotainment system, Auto Park Brake, LED road lighting and LSV equipment.

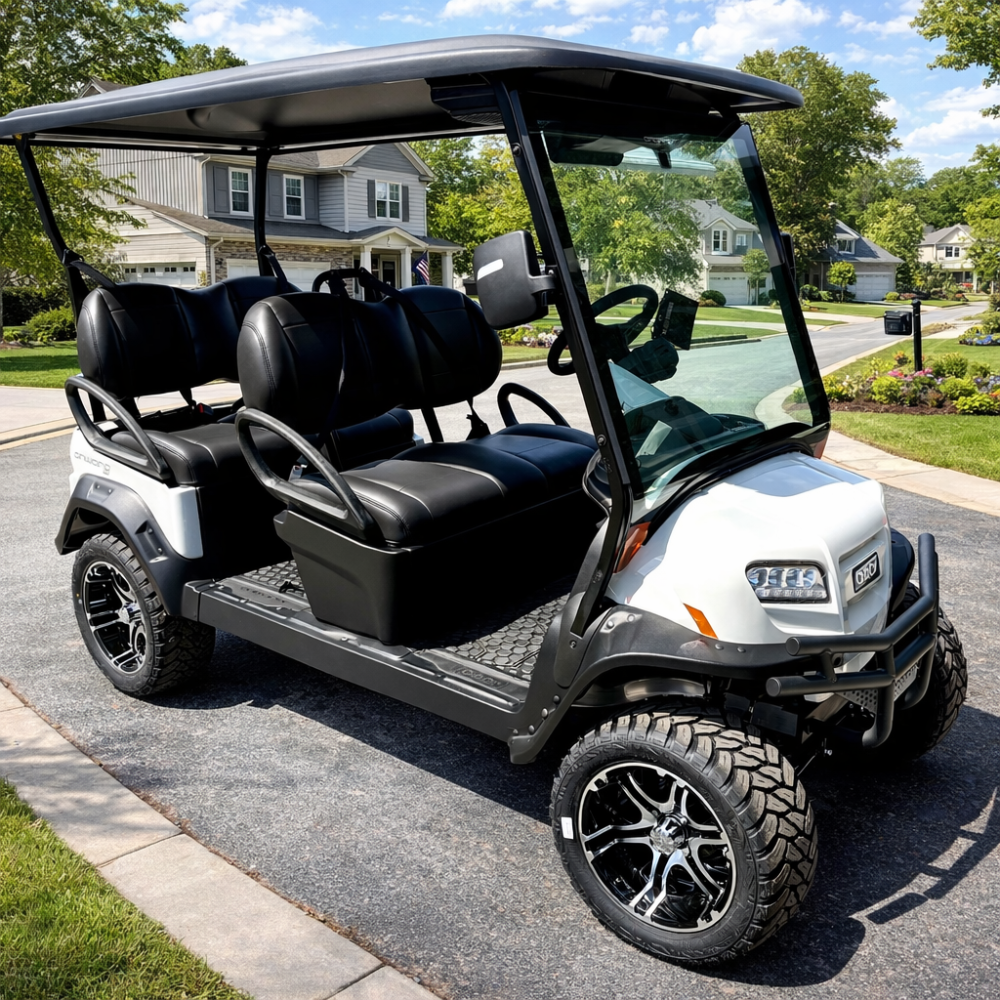

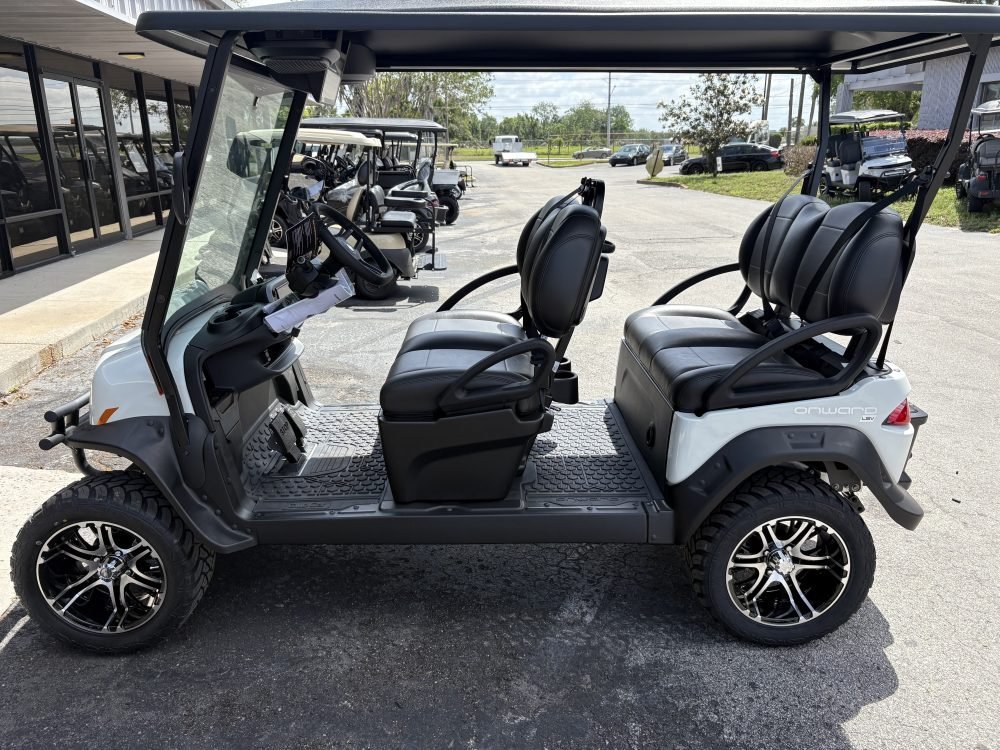

2027 Club Car Onward 4 Forward LSV for Sale

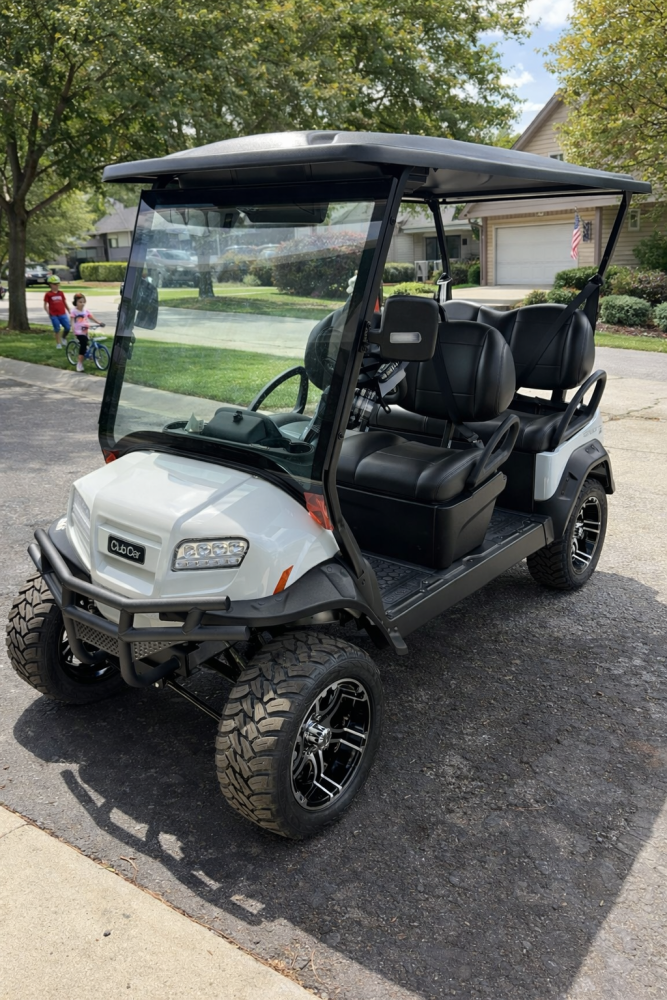

The Onward 4 Forward differs substantially from the traditional rear-facing Onward 2+2.

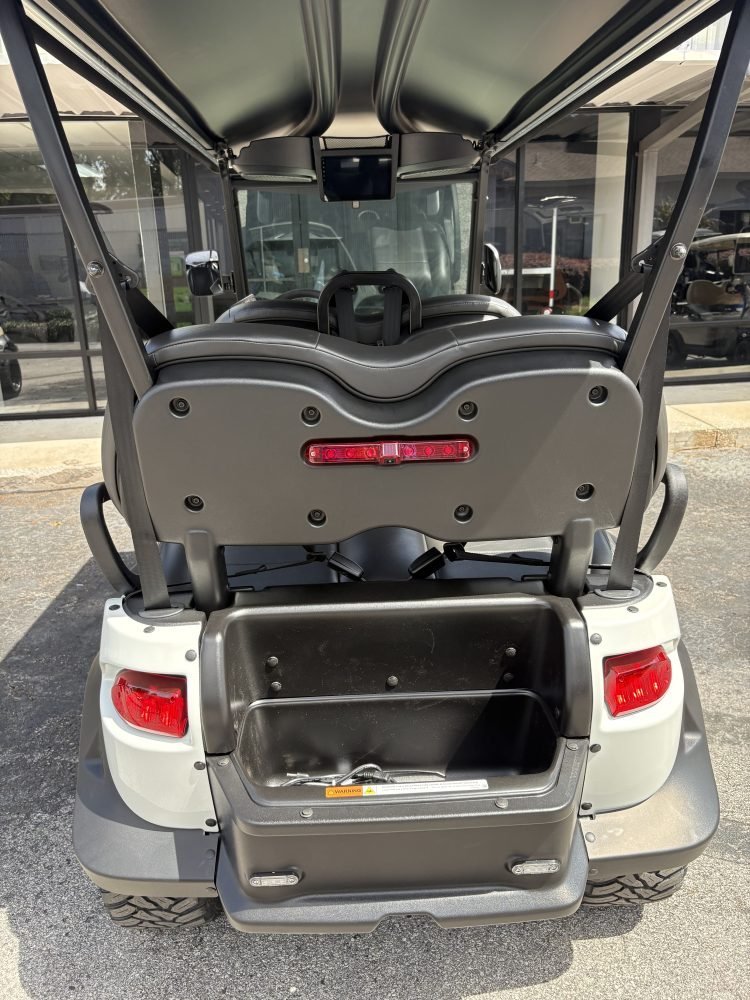

Instead of placing two passengers on a rear-facing bench, Club Car provides two complete rows of forward-facing seating for four occupants. Dedicated storage behind the second row gives passengers additional room for bags, groceries, recreational gear and everyday essentials.
Club Car rates the rear trunk for up to 50 pounds and the total vehicle load capacity at 850 pounds.
4.0 kWh Lithium-Ion Power
The supplied cart uses the 4.0 kWh Base Lithium-Ion battery.
Club Car offers two battery configurations for the Onward 4 Forward LSV:
- 4.0 kWh Base Lithium
- 7.0 kWh XR Lithium
The XR version is an optional extended-range upgrade and should not be applied to this cart unless the individual vehicle is later upgraded or its build documentation says otherwise.
Club Car pairs the lithium system with a 375-amp AC motor controller, motor-shaft direct drive and dash-mounted forward-neutral-reverse selection.
The 4.0 kWh configuration has a manufacturer-estimated range of up to approximately 30 miles under suitable operating conditions. Actual range varies according to passenger load, terrain, hills, driving behavior and operating conditions.
Factory 25 MPH LSV
Club Car rates the Onward 4 Forward LSV at a maximum of 25 mph on level ground.
Unlike a conventional 19 mph Personal Transportation Vehicle, this model is specifically engineered as a Low Speed Vehicle.
Club Car states that the Onward 4 Forward LSV falls under the USDOT LSV classification and incorporates required road-use equipment and occupant-protection systems. Public-road registration, licensing, insurance and permitted roadway limits still depend on state and local law.
For WooCommerce:
Street Legal (LSV) → Yes
Top Speed → 25 mph (Street Legal LSV)
Four-Wheel Hydraulic Disc Brakes
The Onward 4 Forward uses four-wheel hydraulic disc brakes together with an Electronic Park Brake System.
Club Car’s Auto Park Brake automatically applies the parking brake when the vehicle stops and releases it when acceleration is requested.
This is a major functional distinction from Club Car’s conventional Onward PTVs, which use rear mechanical drum braking.

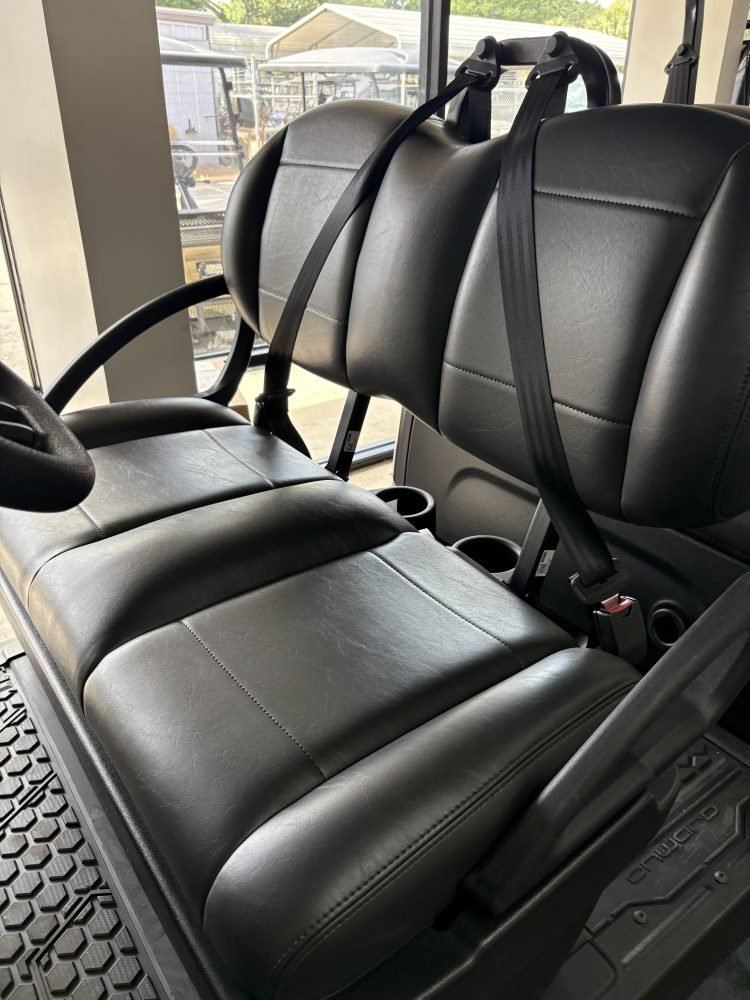

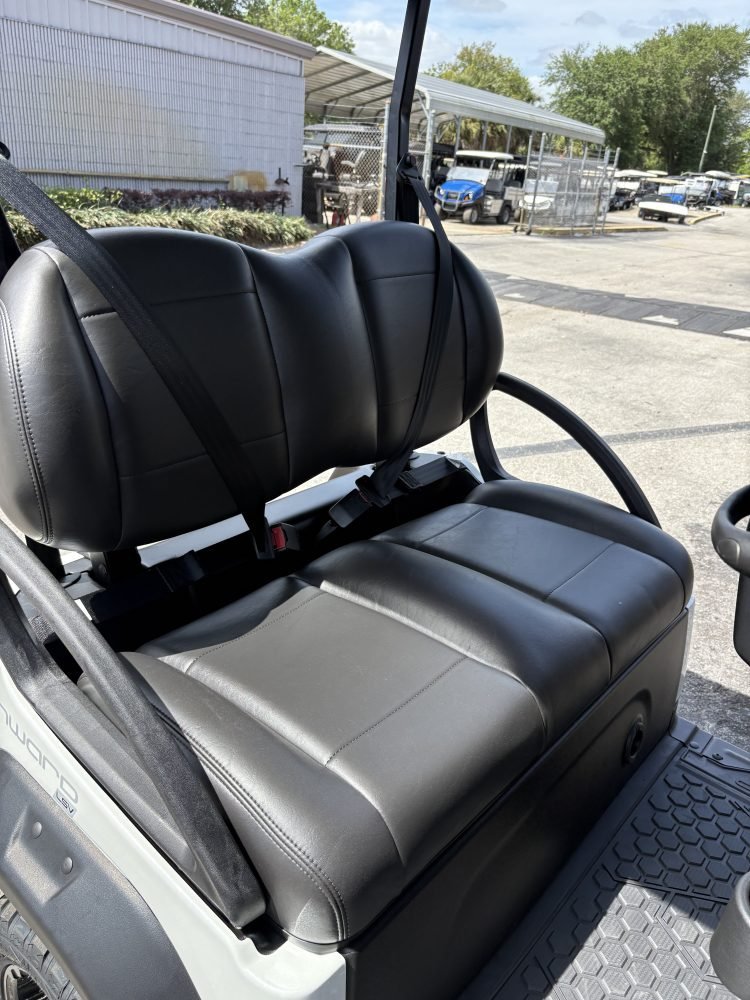

Three-Point Seat Belts and Rollover Protection

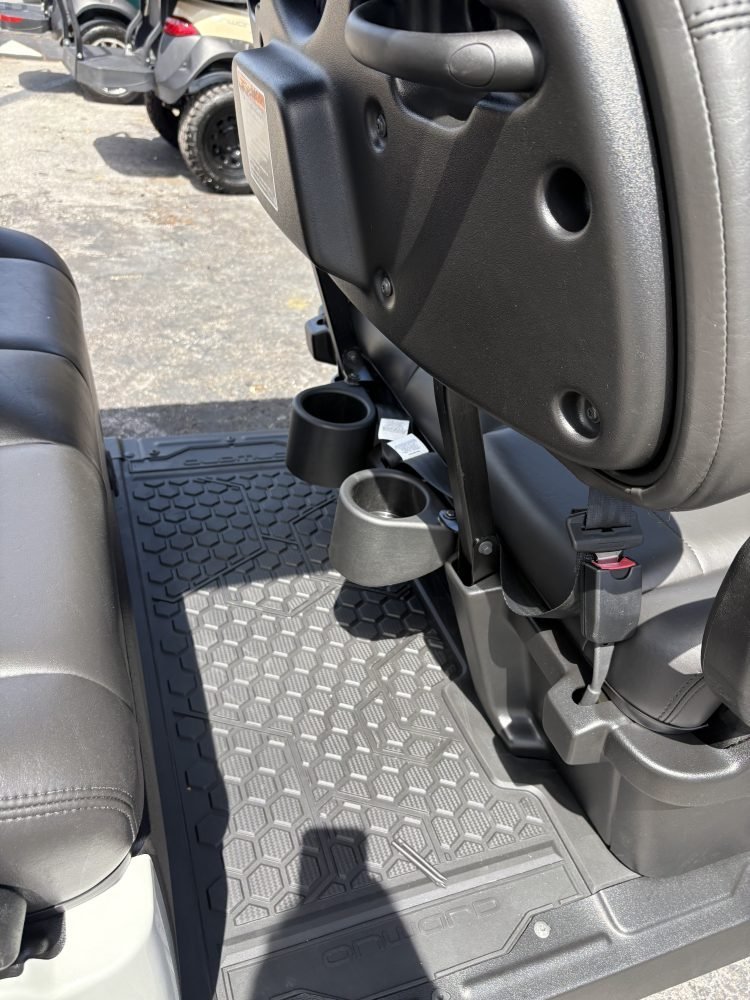

All four passenger positions receive three-point seat belts.
Club Car also reinforces the frame to improve occupant protection during a rollover and equips the vehicle with a rear backup camera and an Acoustic Vehicle Alerting System to improve awareness around pedestrians.
Club Car states that the model meets FMVSS 500 requirements and also complies with the more rigorous SAE J2358 standard referenced for areas including seat-belt anchorage and rollover occupant protection.

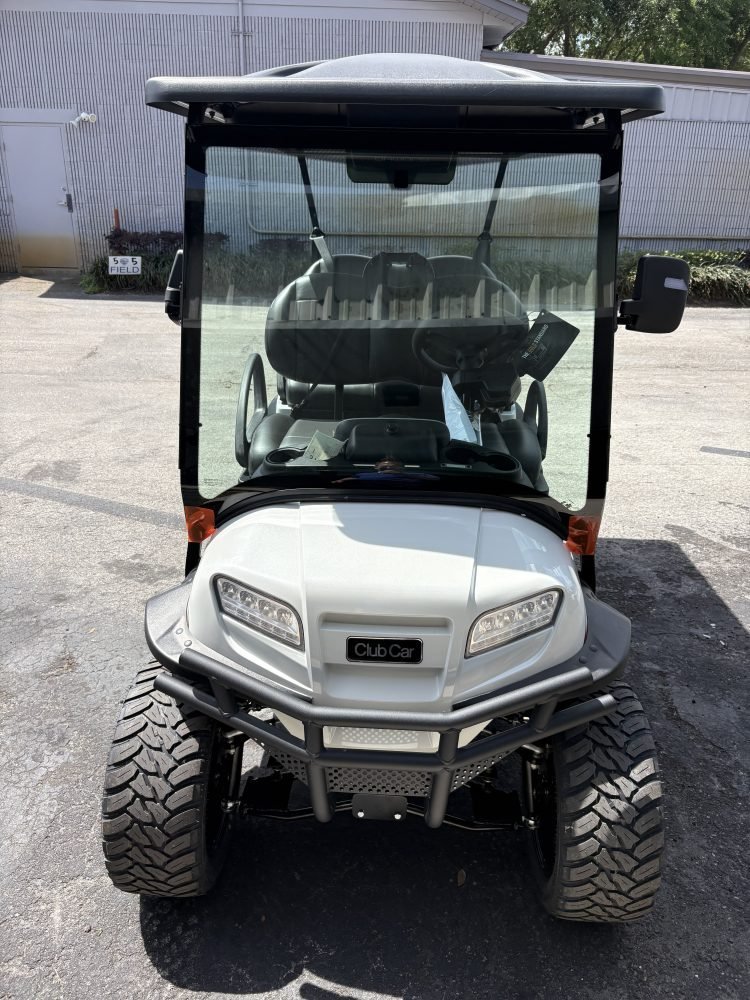

Automotive Safety Glass Windshield
The seller lists an AS1 Automotive Safety Glass windshield.
Club Car confirms Premium DOT Automotive Glass across all current Onward 4 Forward LSV configurations.
This gives the vehicle a more automotive-style windshield than the acrylic fold-down panels commonly used on recreational golf carts.
The supplied unit also includes a manual windshield wiper.
Dual Digital Displays
The Onward 4 Forward uses two distinct screen systems.

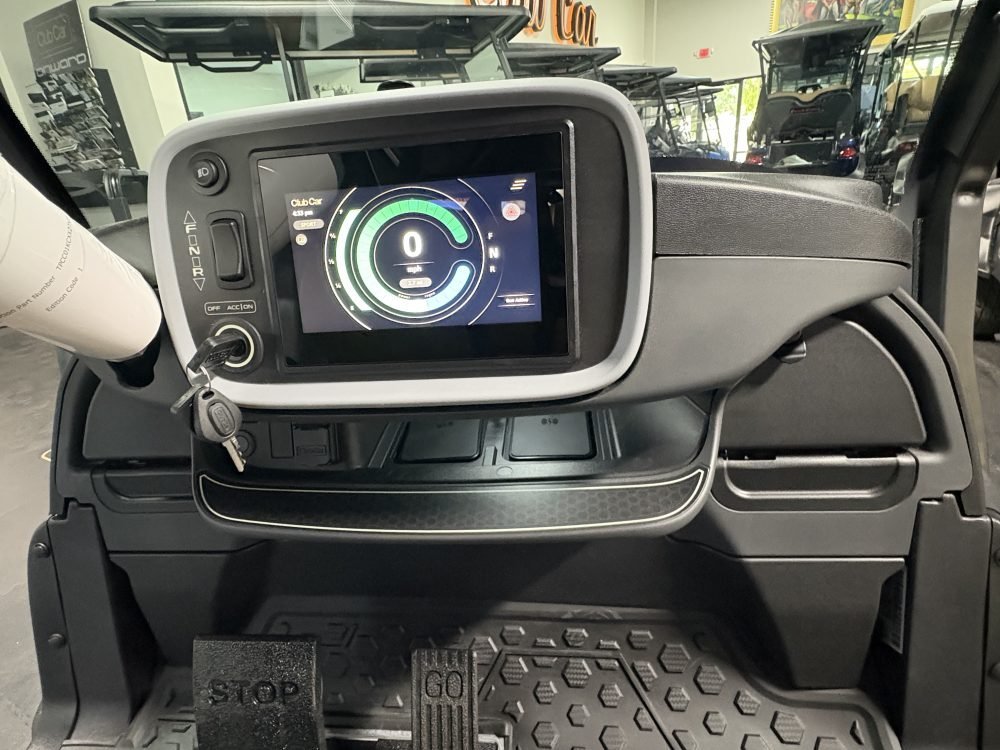

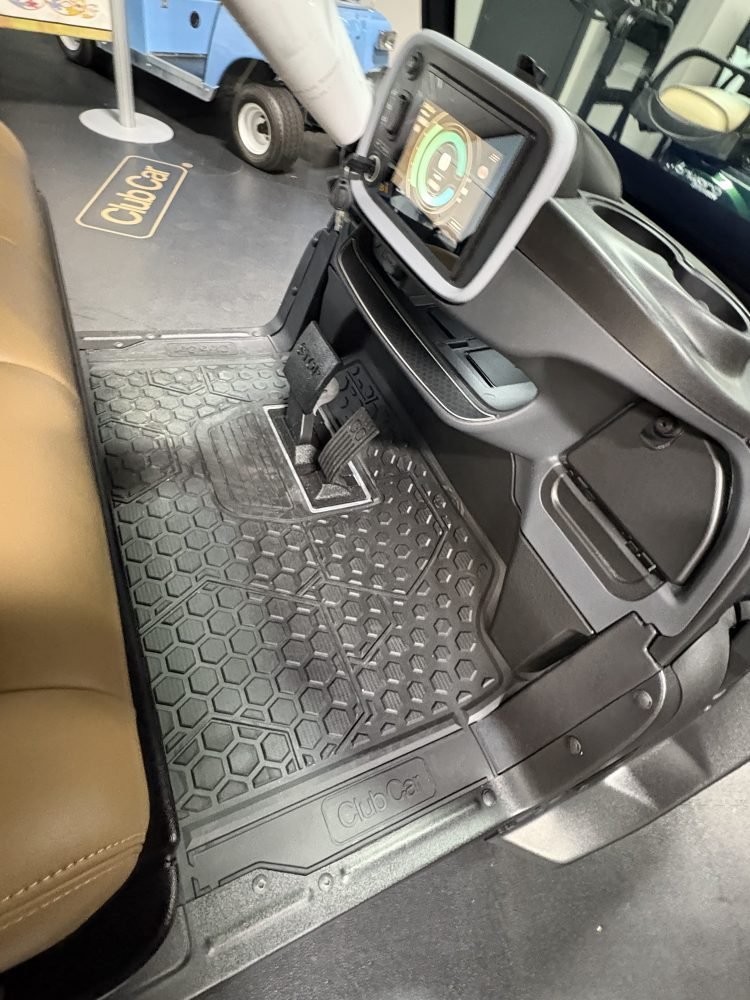

A 7-inch driver display provides vehicle speed, state of charge, battery consumption and diagnostics.

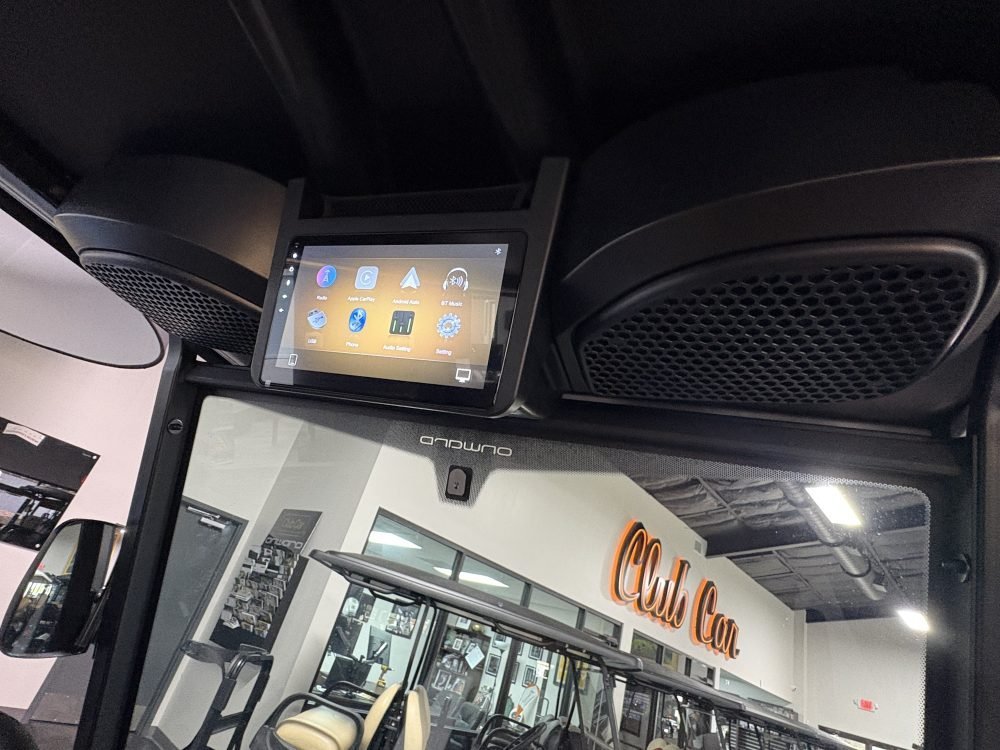

A separate overhead entertainment touchscreen provides:
- Apple CarPlay®
- Android Auto™
- Bluetooth® audio streaming
- Hands-free calling
- AM/FM radio
- Built-in equalizer
Club Car confirms the overhead entertainment console across the current Onward 4 Forward LSV lineup.
Standard vs Premium Equipment
This product should be described specifically as a Standard configuration.
Club Car’s current Standard versions are Glacier White or Midnight Silver with Black seats. Premium versions are Blue Onyx or Metallic Black and add features including dual wireless phone charging and additional lockable side gloveboxes.
Therefore, do not advertise wireless charging as installed on this product unless the physical cart confirms that Premium equipment was added.
The Standard configuration still includes the overhead entertainment console, 7-inch display, upper glovebox, illuminated side pockets and road-going safety equipment.
14-Inch Mercury Wheels
The supplied cart is listed with 14-inch OEM Mercury alloy wheels and 215/50R14 steel-belted radial street tires.
Club Car confirms 14-inch Mercury wheels across its 4 Forward configurations. Standard Midnight Silver models use Mercury/Morpheus, while Standard Glacier White models use Mercury/Klever.
Since the exact body color is not stated, avoid assigning a specific named factory tire until the individual cart is confirmed.
SportDrive Steering and Lifted Suspension
Club Car uses SportDrive™ self-compensating double-reduction helical rack-and-pinion steering on the Onward 4 Forward LSV.
Official dimensions are approximately:
- 120 inches overall length
- 49 inches overall width
- 79 inches overall height
- 83-inch wheelbase
- 7 inches ground clearance
- 18-inch step-in height
- 144-inch turning radius
The vehicle uses independent wide-track double A-arm front suspension with hydraulic shocks and rear leaf suspension with automotive-grade jounce bumpers.
AlumiCore Aluminum Frame
Club Car builds the Onward 4 Forward around its AlumiCore™ ladder-style aluminum box-beam frame.
The body receives automotive-grade paint and UV-protected molding. Club Car emphasizes the aluminum chassis for strength, corrosion resistance and long-term durability.
Key Specifications
- Manufacturer: Club Car
- Model: Onward 4 Forward LSV
- Model Year: 2027
- Condition: New
- Configuration: Standard
- Passenger Capacity: 4
- Seating: Two forward-facing rows
- Power Type: Lithium Electric
- Battery: 4.0 kWh Base Lithium-Ion
- XR Battery: 7.0 kWh optional, not installed
- Controller: 375A AC
- Charger: 650W HF Lithium
- Drivetrain: Motor-shaft direct drive
- Rear Axle Ratio: 14.85:1
- Top Speed: 25 mph
- Estimated Range: Up to approximately 30 miles
- Curb Weight: 1,103 lbs
- Vehicle Load: 850 lbs
- Rear Trunk Capacity: 50 lbs
- Length: 120 in
- Width: 49 in
- Height: 79 in
- Wheelbase: 83 in
- Ground Clearance: 7 in
- Turning Radius: 144 in
- Steering: SportDrive™ rack and pinion
- Brakes: Four-wheel hydraulic disc
- Parking Brake: Electronic
- Frame: AlumiCore™ aluminum
- Driver Display: 7-inch
- Backup Camera: Yes
- Apple CarPlay: Yes
- Android Auto: Yes
- Seat Belts: Three-point, front and rear
- Windshield: Automotive safety glass
- Wheel Size: 14-inch Mercury
Club Car’s official specification page supports these factory values.
Who Is This Club Car Onward Best For?
The 2027 Club Car Onward 4 Forward LSV for sale is best suited to buyers who want a factory-engineered neighborhood vehicle rather than a conventional golf cart with aftermarket road equipment.
Its four forward-facing seats, 25 mph capability, hydraulic brakes, automotive glass, backup camera, infotainment system and dedicated rear cargo space make it particularly appropriate for residential communities, resorts, campuses, private developments and neighborhood transportation where registered LSV operation is permitted.
Why Consider the 2027 Club Car Onward 4 Forward LSV?
The Standard 4.0 kWh configuration retains the major attributes that define the Onward 4 Forward platform: genuine LSV certification, four forward-facing seats, lithium power, four-wheel hydraulic braking, three-point restraints, reinforced occupant protection, dual displays, backup camera, premium glass and aluminum-frame construction.
It is therefore a strong option for buyers who want the core 4 Forward LSV package without paying for Premium body colors, dual wireless chargers or Premium-only side storage.
Order the 2027 Club Car Onward 4 Forward LSV
Before ordering, confirm the exact exterior color, seat color, VIN, inventory number, warranty registration and whether any Premium-only accessories were added to the physical vehicle.
