Description
The 2027 Club Car Onward Lifted 4 Passenger XR Lithium for sale combines Club Car’s versatile 2+2 passenger configuration with lifted suspension and the larger 7.0 kWh Extended Range lithium battery.
This exact vehicle is Stock #4013, finished in Midnight Silver with Premium Contour Black seats. The dealer lists a premium windshield, 7-inch dash display, USB charging, lockable storage, turn signals, hazards, horn and Club Car’s AlumiCore aluminum chassis.
2027 Club Car Onward Lifted 4 Passenger XR Lithium for Sale

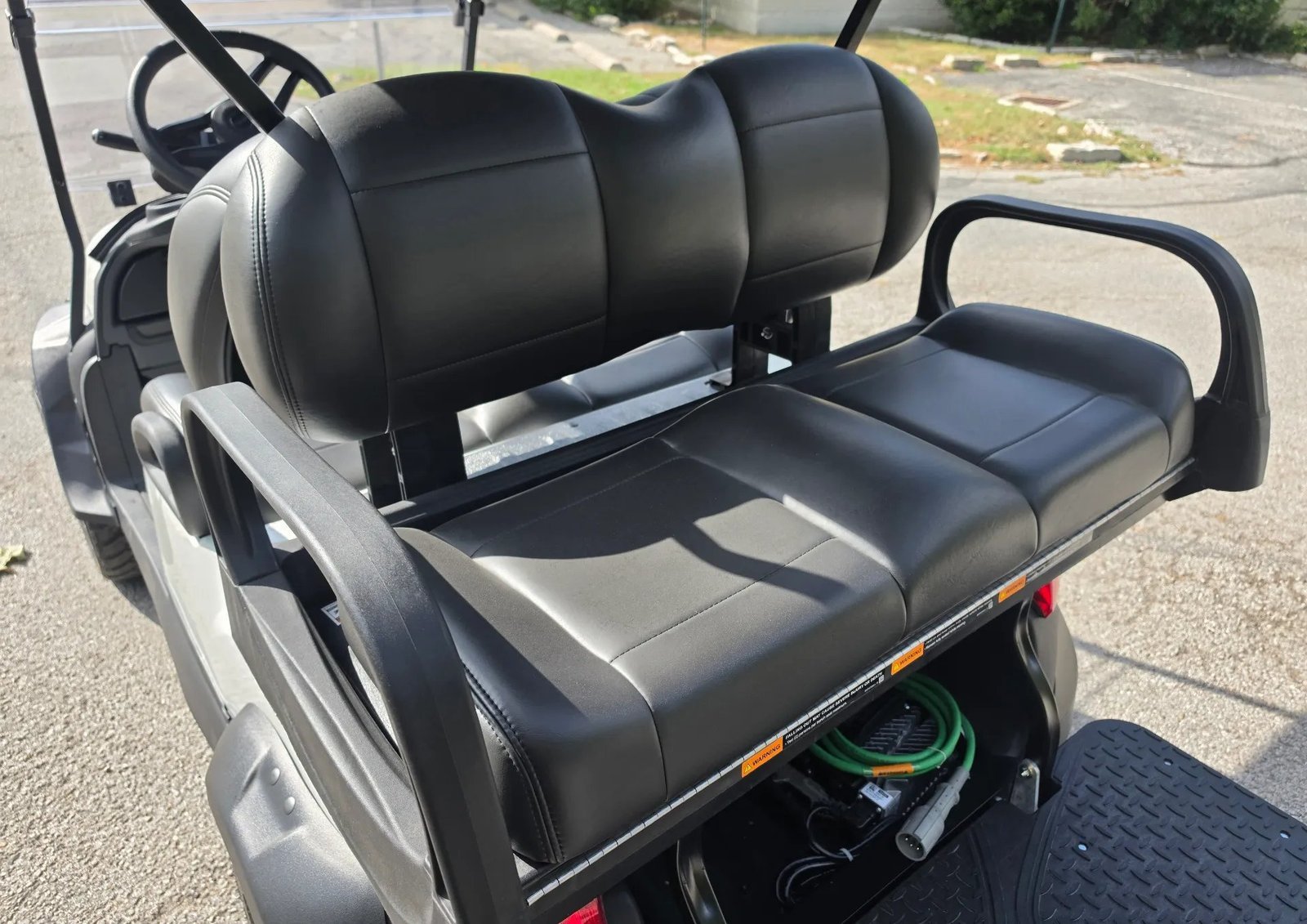

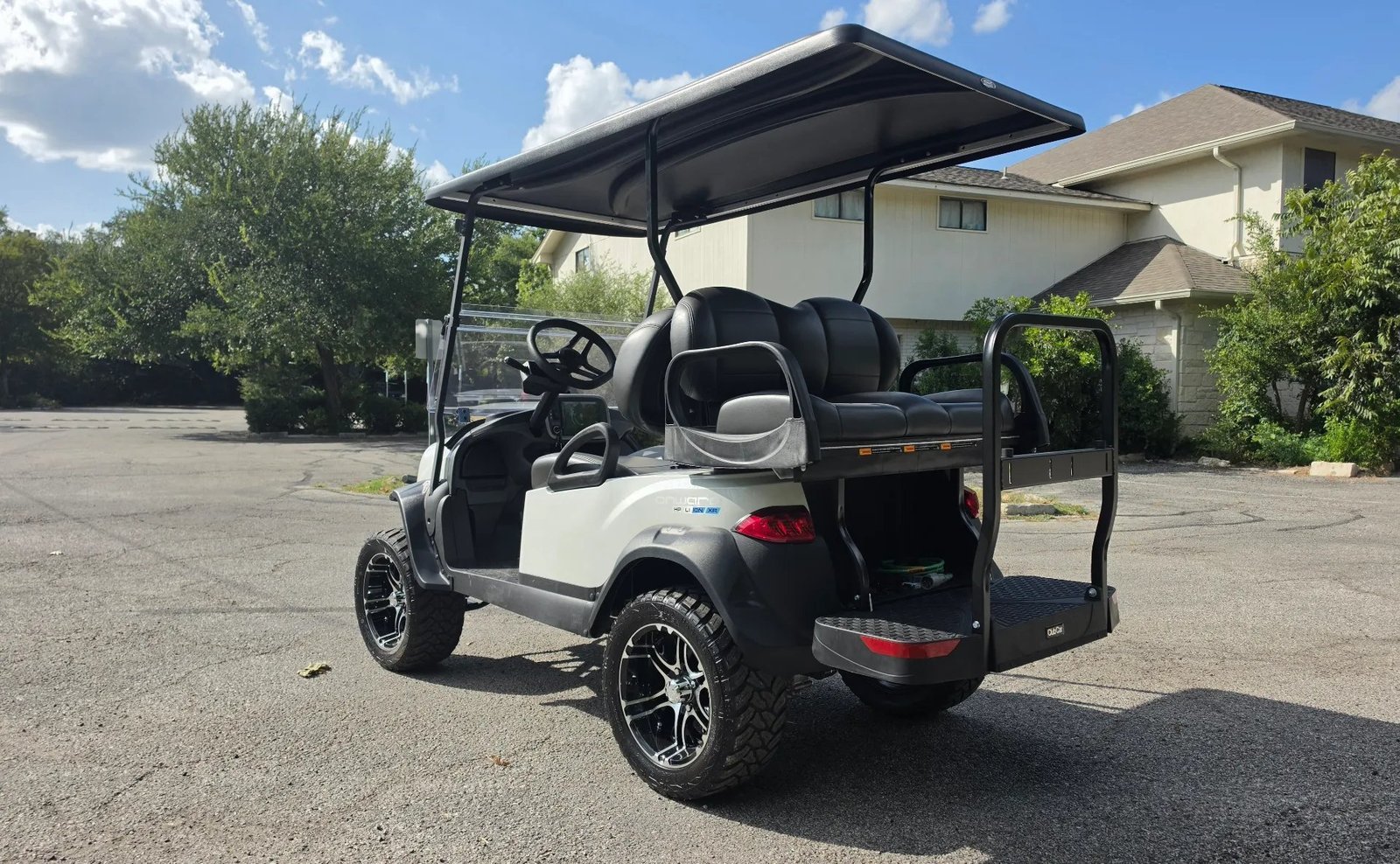

The Onward 4 Passenger uses two forward-facing seats in front and a rear-facing passenger bench behind them.

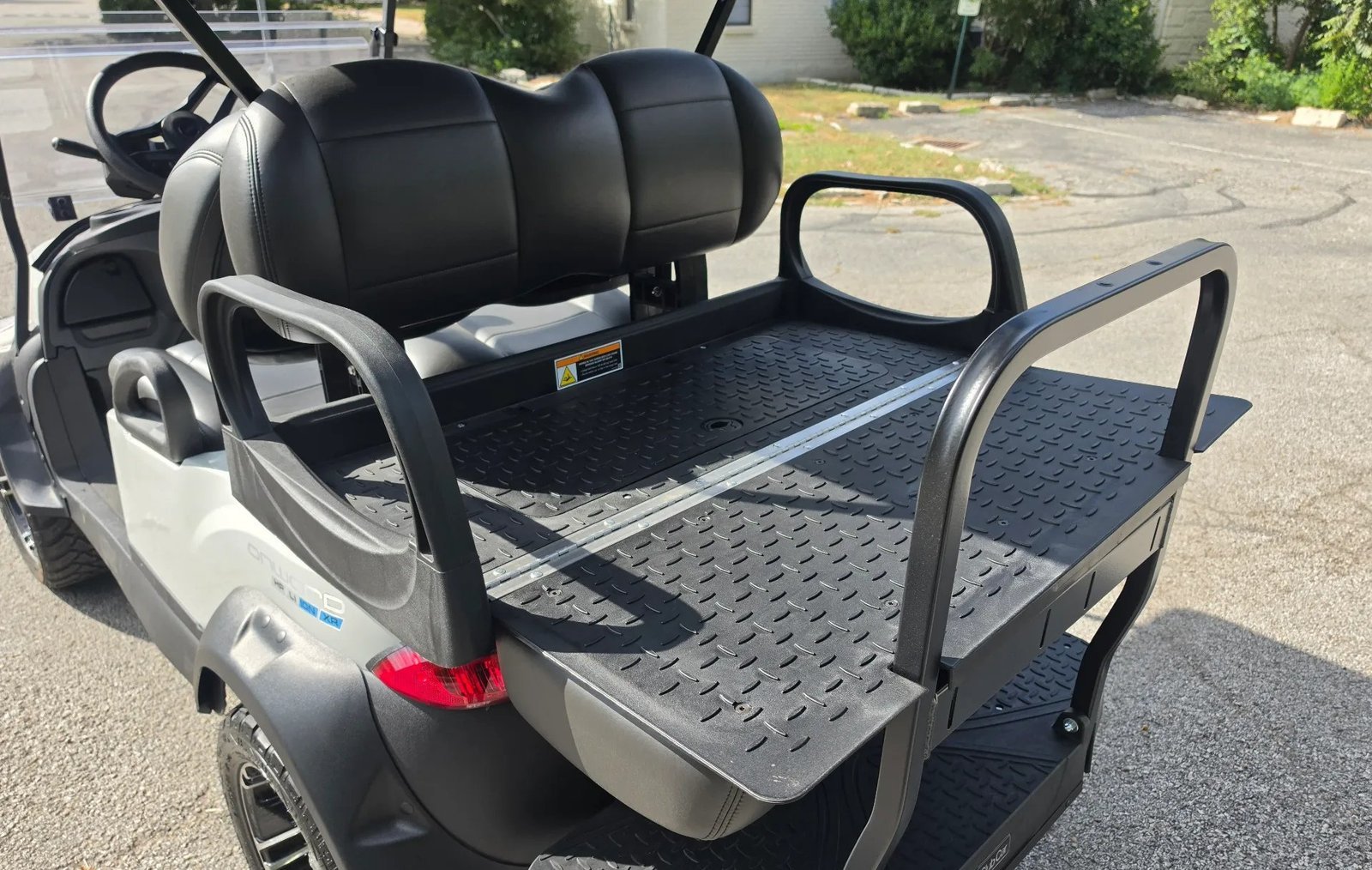

Club Car confirms that the rear seat can flip down into a cargo deck when passenger seating is not required, giving the 2+2 platform useful flexibility for groceries, recreational gear and equipment.
This configuration is different from the Onward 4 Forward LSV. The Onward 4 Passenger is a traditional 2+2 Personal Transportation Vehicle with a factory top speed of 19 mph.
7.0 kWh XR Lithium Power
The biggest technical differentiator on this cart is the XR Lithium battery.
Club Car offers two lithium capacities:
- 4.0 kWh Base Lithium-Ion
- 7.0 kWh XR Lithium-Ion
The exact dealer listing is internally inconsistent because the feature table contains a 4.0 kWh entry while the technical description explicitly says 7.0 kWh, and both the vehicle title and power-type field identify it as XR.
Because Club Car defines XR as the 7.0 kWh configuration, the correct product-page specification is:
Battery → 7.0 kWh XR Lithium-Ion
Do not publish 4.0 kWh for this cart unless the physical battery label or factory build sheet contradicts the XR designation.
Extended Driving Range
Club Car estimates first-year range for the lifted XR Lithium Onward 4 Passenger at approximately 30–55 miles.
After approximately four years of use, Club Car estimates about 25–50 miles for the same lifted XR configuration.
These figures are estimates rather than guarantees. Club Car explains that the lower end reflects maximum vehicle load on moderate hills, while the upper end assumes a driver-only load on flat terrain.
4.7 HP Lithium Performance
Club Car specifies a 375-amp motor controller and 4.7 hp / 3.5 kW rated output for Base and XR lithium Onward 4 Passenger models.
The drivetrain uses:
- Motor-shaft direct drive
- Dash-mounted forward/neutral/reverse
- 14.85:1 rear axle ratio
Club Car also uses pedal-start operation on the Onward platform.
The lithium system is designed for maintenance-free operation, and Club Car says its battery management system protects against conditions including overcharging, overheating and deep discharge.
19 MPH Factory Top Speed
XR adds battery capacity and range, but it does not increase the cart’s factory top speed.
Club Car rates:
- HP Lithium non-lifted: 19 mph
- HP Lithium lifted: 19 mph
- XR Lithium non-lifted: 19 mph
- XR Lithium lifted: 19 mph
Club Car classifies the Onward 4 Passenger as a Personal Transportation Vehicle (PTV) rather than an LSV.
Therefore:
Street Legal (LSV) → No
Top Speed → 19 mph
Turn signals, headlights, horn and hazard lights do not independently make the cart a factory LSV.
Lifted Suspension and 6.4-Inch Ground Clearance
The lifted chassis is another major differentiator.
Club Car specifies:
- Overall length: 114 in
- Overall width: 49.5 in
- Topped height: 80.5 in
- Wheelbase: 67.5 in
- Front track: 40.75 in
- Rear track: 40 in
- Ground clearance: 6.4 in
That gives the lifted model noticeably more clearance than the standard-height Onward, which has 4.5 inches of ground clearance.
14-Inch Mercury Wheels and Morpheus Tires
Club Car’s current configuration matrix pairs the lifted Midnight Silver Onward 4 Passenger with:
14″ Mercury wheels + Morpheus tires.
The manufacturer separately confirms that lifted Onward 4 Passenger models use 14-inch wheel-and-tire packages.
Because the exact dealer feature list does not identify the wheel package, the physical cart should ideally be checked before treating Mercury/Morpheus as inventory-specific rather than factory configuration data.

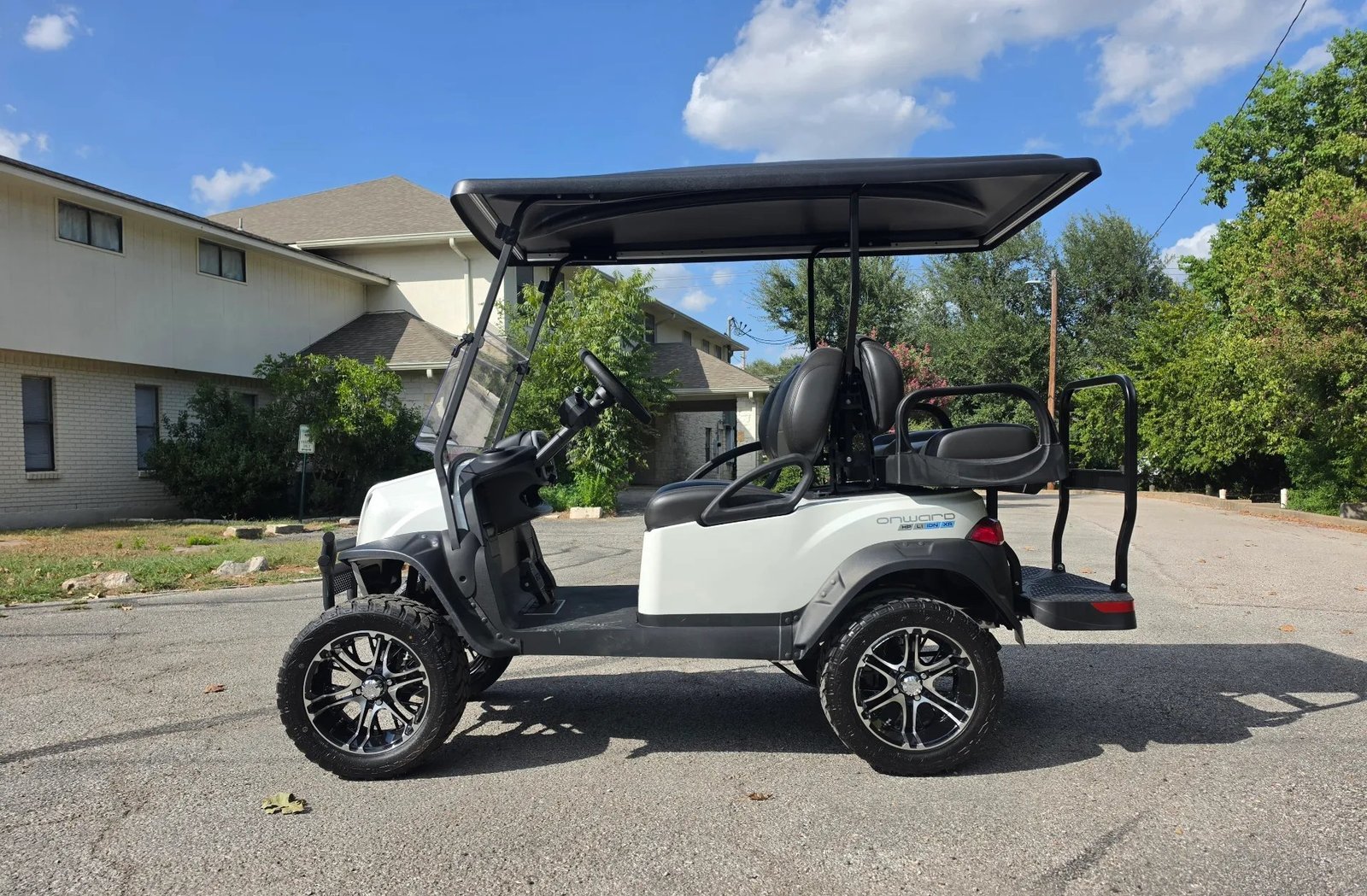

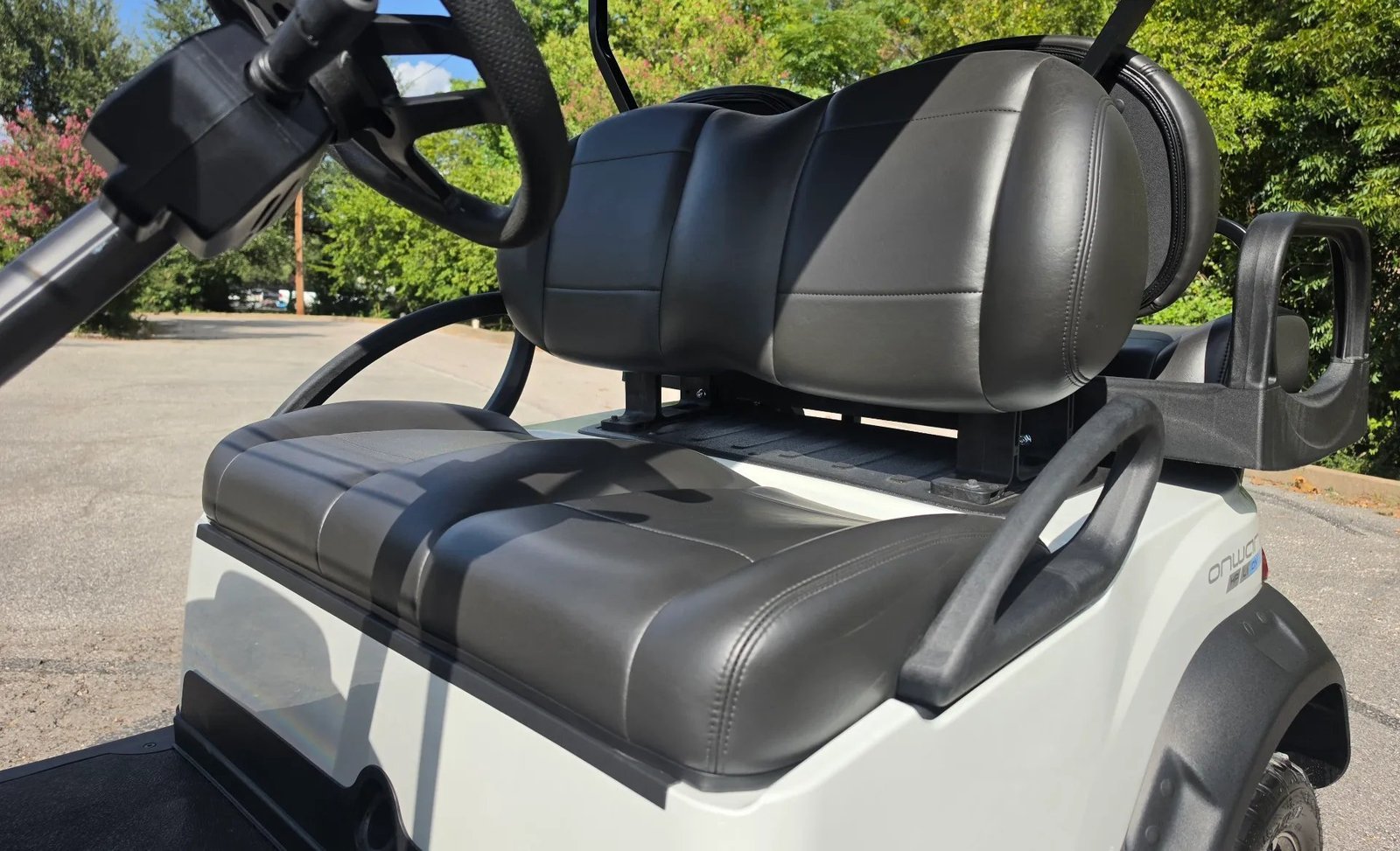

Premium Contour Black Seats
The exact dealer inventory confirms:
Exterior → Midnight Silver
Interior → Premium Contour Black Seats.
Club Car also lists Premium Black seating with its Standard Midnight Silver factory configuration.
This makes the dealer inventory consistent with Club Car’s current color and seating matrix.
7-Inch Digital Display
The dealer describes this specific cart as having a 7-inch display screen in the dash.
Club Car likewise lists a 7-inch display as standard equipment on lithium Onward models.
The lithium display provides battery and vehicle operating information and supports the more advanced cockpit associated with Club Car’s HP lithium platform.
USB and Wireless Charging
This cart specifically lists:
- Dual USB-A
- Dual USB-C
- USB charging ports
Club Car’s current Onward product page also states that lithium models feature dual wireless phone charging pads.
Because the dealer does not explicitly list wireless charging for Stock #4013, the safest inventory copy is to prominently advertise the confirmed USB-A/USB-C ports and treat wireless charging as a factory lithium feature to verify on the physical cart.
Steering, Suspension and Braking
Club Car uses SportDrive™ self-compensating double-reduction helical rack-and-pinion steering across all Onward 4 Passenger models.
Front and rear suspension use independent leaf springs with dual hydraulic shocks.
Braking consists of:
- Self-adjusting rear mechanical drum brakes
- Foot-actuated three-position parking brake
Those specifications directly match the dealer’s listing of self-adjusting drum brakes and foot-actuated parking brake.
AlumiCore Aluminum Chassis
Club Car builds the Onward around its AlumiCore™ ladder-style aluminum box-beam frame.
The body uses automotive-grade paint and UV-protected molding.
This exact dealer unit also independently lists AlumiCore chassis, automotive-grade paint and UV-protected molding.
Key Specifications
- Manufacturer: Club Car
- Model: Onward Lifted 4 Passenger
- Model Year: 2027
- Stock #: 4013
- Condition: New
- Exterior: Midnight Silver
- Interior: Premium Contour Black
- Seating Capacity: 4
- Seating Layout: 2+2, rear-facing second row
- Power Type: XR Lithium-Ion
- Battery: 7.0 kWh XR Lithium-Ion
- Rated Power: 4.7 hp / 3.5 kW
- Controller: 375A
- Drivetrain: Motor-shaft direct drive
- Rear Axle Ratio: 14.85:1
- Top Speed: 19 mph
- Estimated First-Year Range: 30–55 miles
- Estimated Four-Year Range: 25–50 miles
- Curb Weight: 891 lbs
- Vehicle Load Capacity: 800 lbs
- Overall Length: 114 in
- Overall Width: 49.5 in
- Height: 80.5 in
- Wheelbase: 67.5 in
- Ground Clearance: 6.4 in
- Turning Radius: 116 in
- Steering: SportDrive™ rack and pinion
- Suspension: Independent leaf springs with dual hydraulic shocks
- Brakes: Self-adjusting rear mechanical drums
- Parking Brake: Foot actuated
- Frame: AlumiCore™ aluminum
- Driver Display: 7 in
- USB Charging: Dual USB-A and USB-C
- Windshield: Premium
- Lighting: Headlights and LED taillights
- Turn Signals: Yes
- Hazard Lights: Yes
- Horn: Yes
- Lockable Storage: Yes
Club Car independently supports the powertrain, dimensions, range, performance and chassis specifications.
Who Is This Golf Cart Best For?
The 2027 Club Car Onward Lifted 4 Passenger XR Lithium for sale is especially well suited to buyers who want longer lithium range, greater ground clearance and flexible passenger/cargo capability.
Its rear-facing second row works well for families and groups, while the flip-down cargo arrangement provides useful versatility for private properties, resorts and community transportation where PTVs are permitted.
Why Consider the XR Lithium Configuration?
The 7.0 kWh XR pack is the main advantage over the standard HP Lithium version.
Club Car estimates the lifted XR model at up to approximately 55 miles of first-year range, compared with approximately 20–35 miles for the lifted standard HP Lithium configuration.
That makes XR particularly attractive to owners who expect longer daily driving distances between charges.
Order the 2027 Club Car Onward Lifted XR Lithium
Before purchase, confirm the battery label/build sheet to close the dealer’s 4.0-versus-7.0 kWh data conflict, along with the exact wheel/tire package, wireless charging equipment and warranty registration for Stock #4013.
